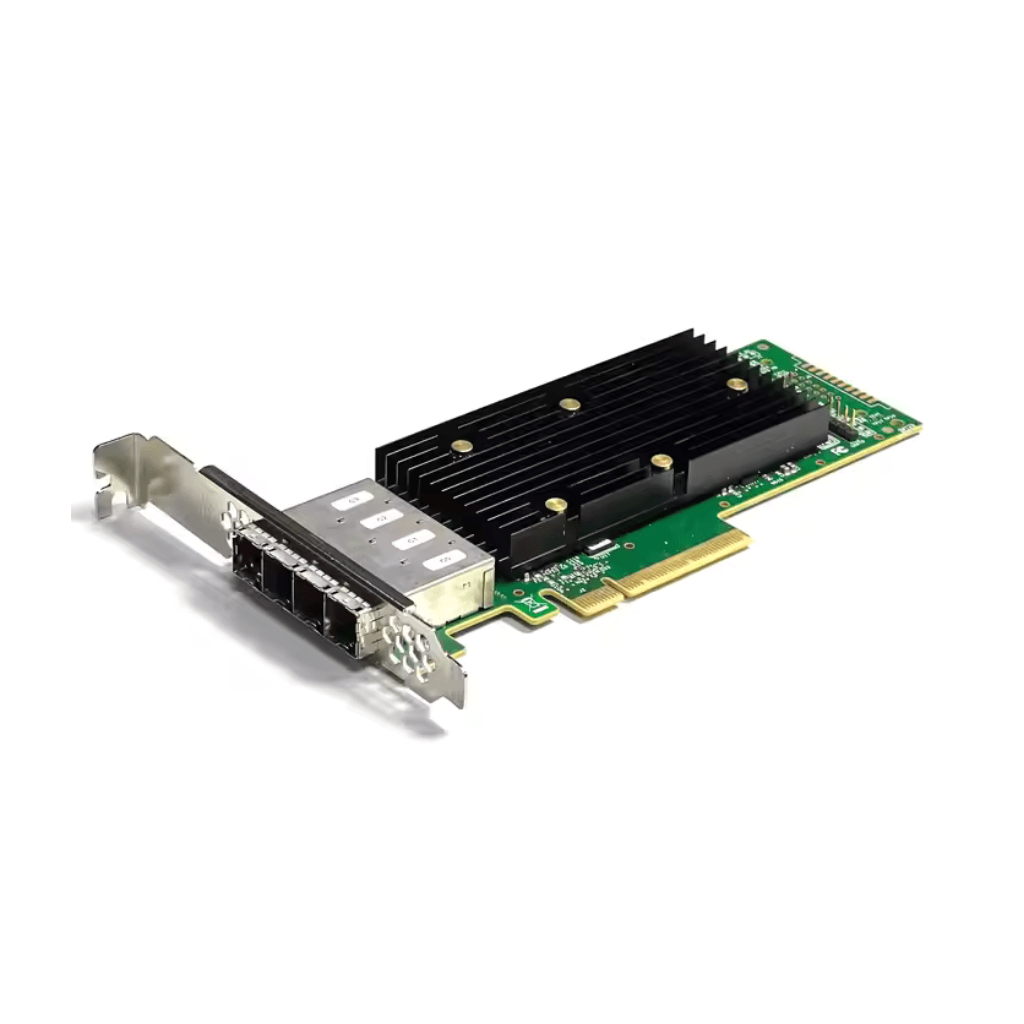

Broadcom HBA 9400-16e 16-Port External Tri-Mode Storage Adapter supporting SAS, SATA, and NVMe

Interface Type: PCIe 3.1 x8
External Ports: 8
Connector Type: 4 (x4) SFF-8644 connectors
Device Compatibility: SAS, SATA, and NVMe (Tri-Mode support)
Maximum Device Support: SAS/SATA: 1024
Controller Type: SAS3416
Data Throughput: Up to 12Gb/s per port
Power Consumption: Typical 11.18W
Operating Voltage: 12V ±8%; 3.3V ±9%
Reliability: MTBF > 4,500,000 hours at 40°C
Management Software: LSA, StorCLI, HII
OS Compatibility: Windows, VMware vSphere/ESXi, Red Hat, SUSE, Ubuntu, Citrix XenServer, CentOS, Debian, Oracle Linux, Fedora, FreeBSD
Certifications: FCC 47 CFR part 15 Subpart B, class B
Physical Dimensions: 6.600 in x 2.712 in (167.65 mm x 68.90 mm)
Operating Temperature Range: 0°C to 55°C
Warranty: 3 months
