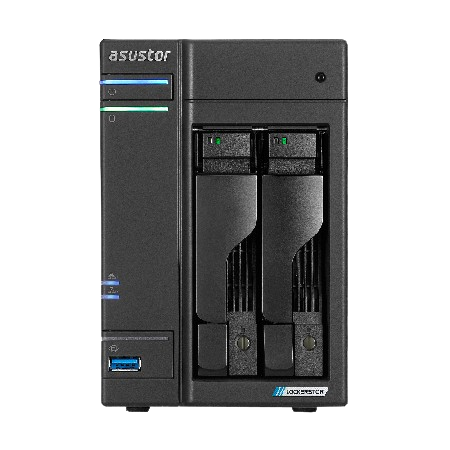

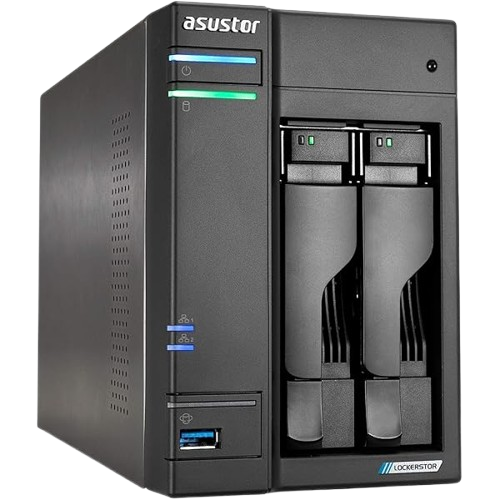

ASUSTOR AS6702T 2-bay Tower NAS Storage
Processor : Intel Celeron N5105 Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory : 4GB SO-DIMM DDR4 (4GB x1, Expandable. Max 16GB)
HDD : 2 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
M.2 Drive Slots : 4
Maximum Drive Bays with Expension Unit : 10
Expansion : 2 x USB 3.2 Gen 2 (10Gbps)
Network : 2 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output : 1 x HDMI 2.0b
Dimensions : 163.5 (H) x 108 (W) x 230 (D) mm
Weight : 2.00kg
Power Consumption : 21 W (Operation) ; 13.5 W (Disk Hibernation) ; 0.79 W (Sleep Mode)
Warranty : 3 year Parts warranty
The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
- Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
- Superfast 2.5-Gigabit Ethernet ports
- Flexible PCIe slot for M.2 SSDs
- Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
- Uses DDR4-2933 with 40% more performance
- USB 3.2 Gen2 ports – 10Gbps speed
- Enjoy, download, upload and stream content with 4K transcoding
- Increased ventilation for SSDs
- Supports Wake on LAN and Wake on WAN
Unleashed Strength
Uses powerful software tools to ensure data is safe and secure
Unleashed Speed
Uses faster hardware for more efficiency
Unleashed Creativity
Maximum creativity without computing constraints
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
* Lockerstor 2 Gen2 (AS6702T) 10GbE not supported.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
