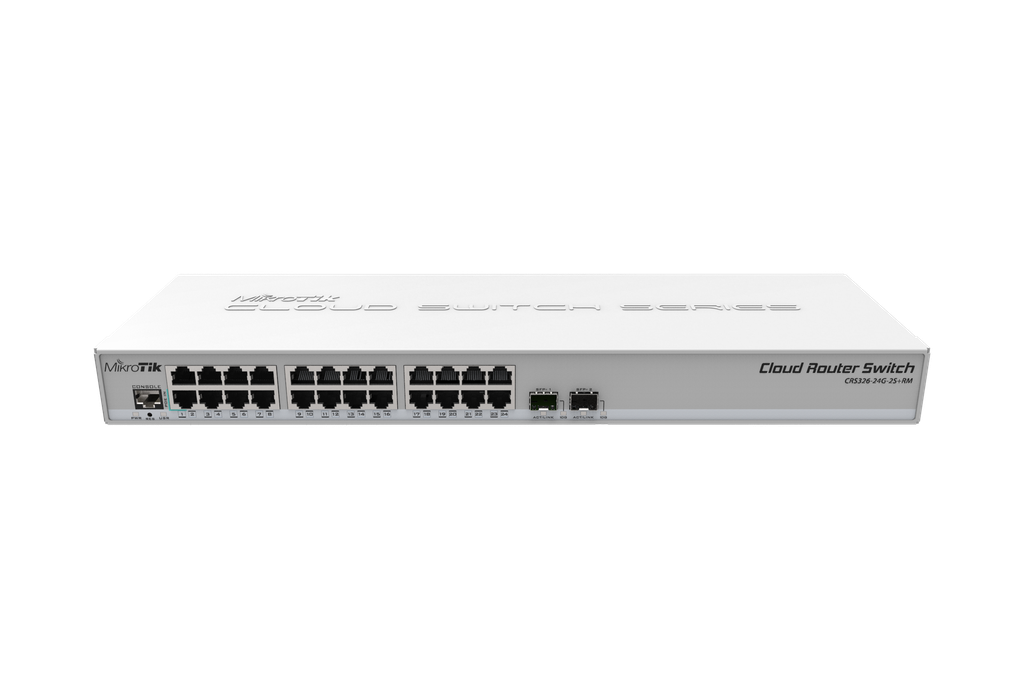

Mikrotik 24-port GigE + 2x SFP+ Cloud Router Switch
Product code: CRS326-24G-2S+RM
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: 98DX3236
Dimensions: 443 x 144 x 44 mm
RouterOS license: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Max power consumption: 24 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 10-30 V
10/100/1000 Ethernet ports: 24
Serial console port: RJ45
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
