Mikrotik 20-port SFP + 4x SFP with 4x Combo ports Cloud Router Switch
Product code: CRS328-4C-20S-4S+RM
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: 98DX3236
Dimensions: 443 x 194 x 44 mm
RouterOS license: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 43 W
Cooling type: 2 fans
Ethernet Combo ports: 4
SFP ports: 20
SFP+ ports: 4
Serial console port: RJ45

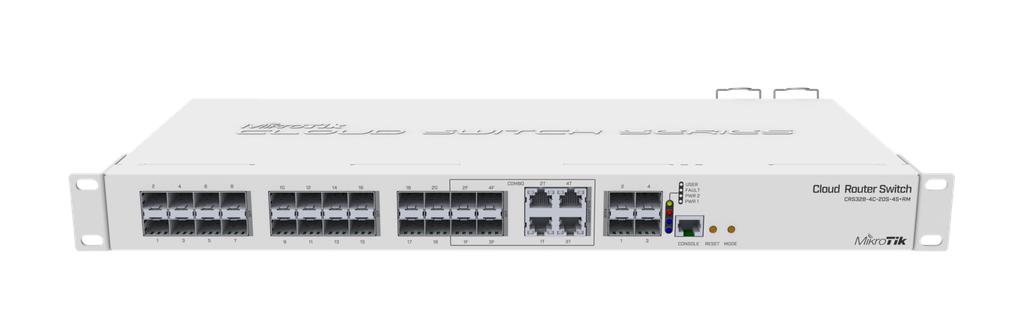

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.
The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
