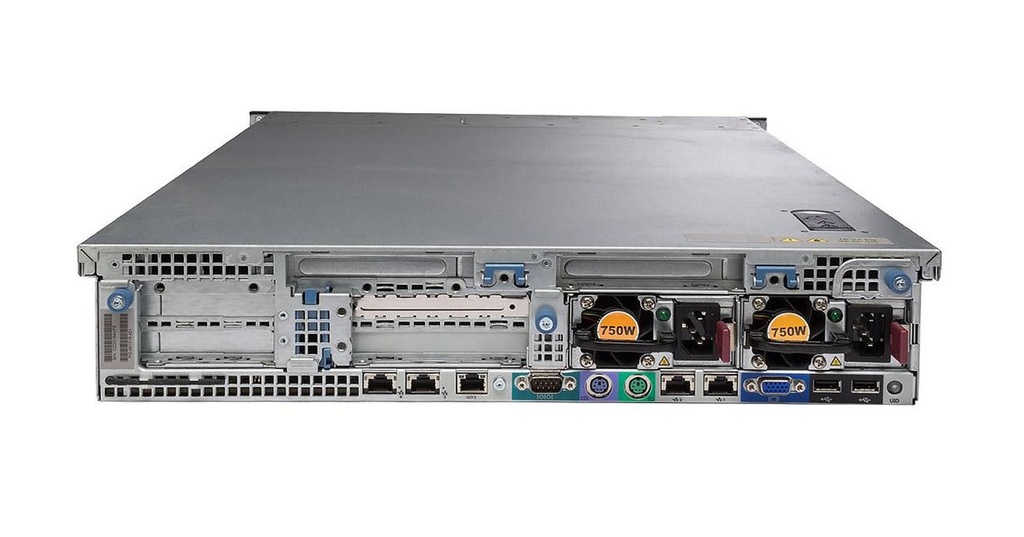

HP DL380 G7 2U Server 16xSFF- Refurbished


HP Proliant DL380 Gen7
-Intel Xeon X5690 3.467Ghz/3.733Ghz(Turbo) 6C/12T
-16GB (2x8GB) DDR3 RDIMM
-2x 300GB (16x2.5” hard drive bays )
-HP SmartArray P410i Controller
-4x 1GE, 2x NC382i Dual Port Multifunction Gigabit Adapters
-HP 750 W Common Slot High Efficiency Power Supply
-1 Year Part Exchange Warranty

Part Number: DL380G7-16SFF

RM 999.00 999.0 MYR RM 999.00

RM 999.00

Not Available For Sale

    This combination does not exist.

    Processor(s): Intel Xeon X5690 3.46Ghz, 12MB, 6C/12T Turbo
    Chassis: Chassis with up to 16 x 2.5" SAS/SATA Hard Drives
    Memory: 16GB (2x8GB) DDR3-RDIMMM 1600Mhz
    Hard Disk: 300GB SAS 10k RPM 2.5
    Storage Controller: HP SmartArray P410i Controller
    Network Controller: 4x 1GE, 2x NC382i Dual Port Multifunction Gigabit Adapters
    Power Supply: HP 750 W Common Slot High Efficiency Power Supply
    Warranty: 1Yr Part Exchange

    HP ProLiant DL380 Generation 7 (G7)

    The HP ProLiant DL380 G7 Server continues to deliver on its heritage of engineering excellence with increased flexibility and performance, enterprise-class uptime and HP Insight Control manageability, 2 socket Intel® Xeon® performance, and 2U density for a variety of applications.

    Up to 2 Six-Core or Quad-Core Intel® Xeon® processor 5600/5500 sequence) Intel® 5520 Chipset

    Total of 18 DIMM slots

    Up to 192 GB (16 GB kits populating12 DIMM slots), using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots

    Up to 48 GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully populated at 2 DIMMs per Channel in 12 slots
    Two DIMMs Per Channel at 1333MHz supported with ROM update via ROM Based Setup Utility (RBSU) for 1333MHz RDIMMs. UDIMM support is only on 12-slot servers.

    Storage Controller:
    Entry Models: HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
    Base Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
    Performance Models: HP Smart Array P410i/1G FBWC Controller (RAID 0/1/1+0/5/5+0)
    High Efficiency: HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)
    Available upgrades: 1G FBWC, 512MB FBWC, 256MB, 512MB with BBWC, Battery kit upgrade (for the 256MB cache), and Smart Array Advanced Pack (SAAP)

    Internal Drive Support:
    Standard (8) small form factor (SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial ATA (SATA) drives

    Optional second drive cage for additional (8) SFF drive bays (total 16)

    Optional cage for (6) Large Form Factor SAS/SATA hard drive bays
    Slimline media bay supporting Optical Drive (ships standard on performance models)
    NOTE: The Optical Drive option is not available when you upgrade with the additional 8 SFF drive cage, or in the LFF Models

    Network Controller:
    Two HP NC382i Dual Port Multifunction Gigabit Server Adapters (four ports total) with TCP/IP Offload Engine, including support for Accelerated iSCSI

    Expansion Slots:
    Up to six available PCI-Express Gen2 slots, optional mixed PCI-X / PCI-Express or x16 PCI configurations available (see "Standard Features -Expansion Slots" section for more details)

    USB 2.0 support, 5 total ports: (2) ports up front; (2) ports in back; (1) port internal 1 internal Secure Digital (SD) slot

    Fully redundant hot plug fans (N+1)
    Hot plug power supply with optional redundancy (Included in Performance models)

    Power Sources:
    Dual Common Slot Bay for Right Sized, Hot plug and Redundant Power options

    HP 1200W CS Platinum Power Supply (optional)
    HP 750W CS HE Gold Power Supply (standard on some models) HP 460W CS HE Gold Power Supply (standard on some models) HP 1200W -48V DC Power Supply (optional)

    Infrastructure Management:
    Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status LEDs, Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
    HP Integrated Lights-Out (iLO) for ProLiant provides simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    HP Insight Control a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.

    Form Factor:

    HP ProLiant DL380 Generation 7 (G7)

    Rack (2U), (3.5-inch); Depth 27.25 inches (69.98 cm)
    Operating Systems and Virtualization Software Support for ProLiant Servers:

    Supports Windows, RHEL, SLES, OEL, Solaris, VMware, and Citrix XenServer
