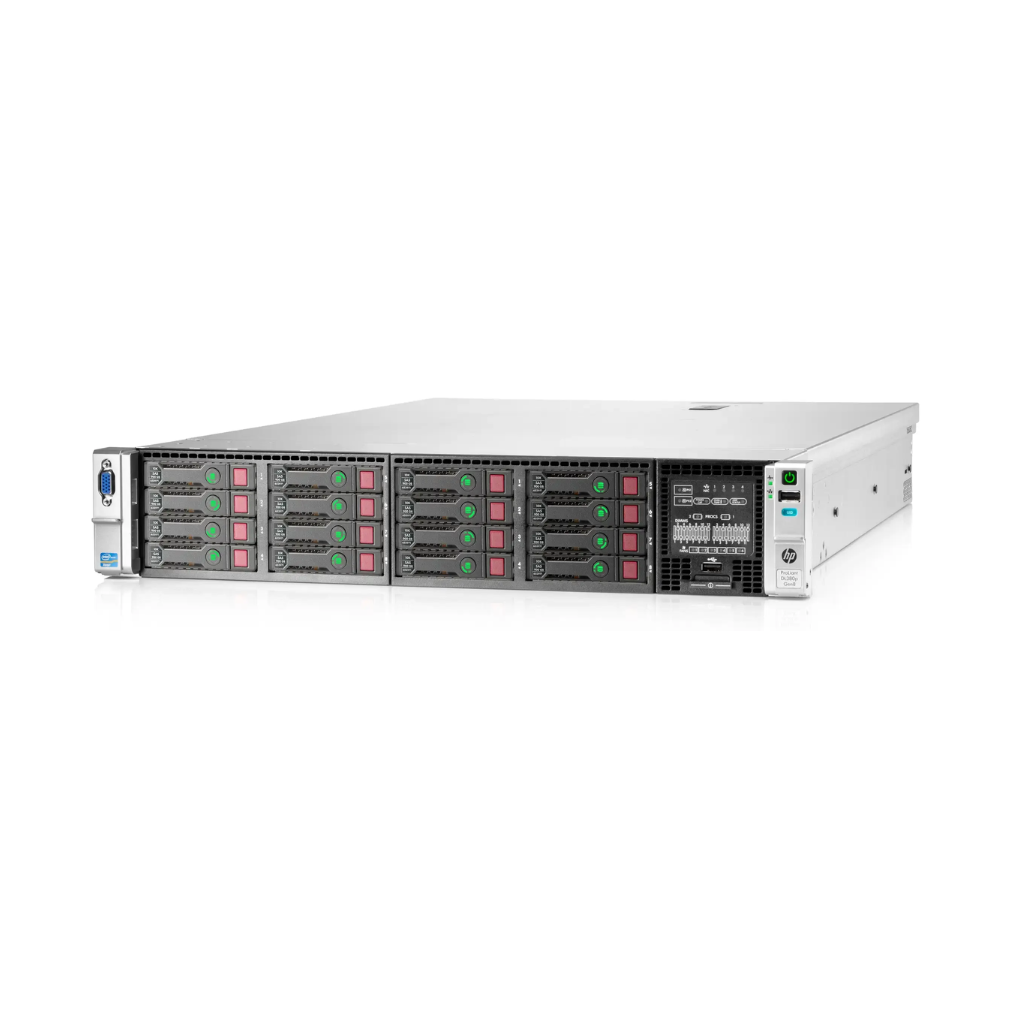

(Refurbished) HPE ProLiant DL380p Gen8 Server (2xE5-2620V2.128GB.30TB)

https://server2u.com/web/image/product.template/55309/image_1920?unique=f5d34ff

Model: HPE ProLiant DL380p Gen8 Server
Processor: 2 x Intel Xeon Processor E5-2620v2
Memory: 128GB RAM
HDD: 5 x 6TB
RAID Controller: HPE Smart Array P420i Controller
Power Supply: 1 x 750W
Warranty: 1 year Parts warranty

Part Number: DL380G8-E52620V2-128GGB

RM 4,010.00 4010.0 MYR RM 4,010.00

RM 4,010.00

Not Available For Sale

    This combination does not exist.

    Processor(s): 2 x Intel Xeon Processor E5-2620V2
    Memory: 128GB
    Hard Disk: 5 x 6TB
    Storage Controller: HPE Smart Array P420i Controller
    Power Supply: Single Power Supply (support 750W)
    Warranty: 1 year Parts warranty

    HPE ProLiant DL380p Gen8 Server

    The HP ProLiant DL380p Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced configuration flexibility, unmatched performance, and leading energy efficient design the DL380p Gen8 offers the perfect solution for the dynamic compute requirements of today's demanding datacenters.

    Product features

    Feature

    Description

    Processor (One of the following depending on Model)

    E5-2600 v2 series Processors
    • Entry processors:

      • Intel Xeon E5-2609 v2 (2.5 GHz/4-core/10MB/6.4GT/s QPI/80 W)

      • Intel Xeon E5-2603 v2 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Base processors:

      • Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5)

      • Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

      • Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5

      • Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4)

      • Intel Xeon E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT/s QPI/60 W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

    • Performance processors:

      • Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8)

      • Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8)

      • Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)

      • Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8)

      • Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

      • Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

      • Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

      • Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)

      • Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

      • Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)

    E5-2600 series Processors
    • Entry processors

      • Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4GT/s QPI/80 W)

      • Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Base processors

      • Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

      • Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

      • Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

      • Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0GT/s QPI/60 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Performance processors

      • Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0GT/s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

      • Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

      • Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

      • Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

      • Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

      • Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

      • Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

      • Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

      • Intel Xeon E5-2643 (3.3 GHz/4-core/10MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 1/1/2/2)

      • Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)

    Cache memory (One of the following depending on Model)

    • 30MB (1 x 30MB) Level 3 (For Twelve-core processors)

    • 25MB (1 x 25MB) Level 3 (For Ten-core processors)

    • 20MB (1 x 20MB) Level 3 (For Eight-core processors)

    • 15MB (1 x 15MB) Level 3 (For Six-core processors)

    • 10MB (1 x 10MB) Level 3 (For Quad-core processors)

    • 5MB (1 x 5MB) Level 3 (For Dual-core processors)

    Chipset

    • Intel C600 series chipset

    • Intel E5-2600 and E5-2600 v2 Processor families

    Upgradeability

    • Upgradeable to 2 processors (24 Cores)

    • Up to 24 DIMM slots available for higher Memory capacity

    • FlexLOM connector for 1 Gigabit or 10 Gigabit networking options

    • 8SFF Hard drive bays (total of 16 with optional upgrade)

    • Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)

    • Redundant Power Supply

    • Optical Drive (8SFF/8LFF only)

    On System Management Processor

    HP iLO (Firmware: HP iLO 4)

    Memory protection

    • Advanced ECC

    • Online Spare

    • Lock-step mode

    Memory (One of the following depending on Model)

    Type

    HP Smart Memory DDR3 Load Reduced(LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)



    DIMM Slots available

    24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)

    Maximum capacity (LRDIMM)

    768GB (24 X 32GB RDIMM at 1066 MHz)

    Maximum performance capacity (RDIMM)

    384GB (24 x 16GB RDIMM at 1333 MHz)

    Maximum performance capacity (UDIMM)

    128GB (16 x 8GB UDIMM at 1600 MHz)

    Maximum Capacity (HDIMM)

    768GB (24 x 32GB UDIMM at 1333 MHz)

    Network controller (One of the following depending on Model)

    HP ProLiant Gen8 servers offer a new networking technology - FlexNET Technology. The HP ProLiant DL380p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions.

    Entry models

    HP Ethernet 1Gb 4-port 331FLR Adapter



    Base models

    HP Ethernet 1Gb 4-port 331FLR Adapter

    25SFF models

    HP FlexFabric 10Gb 2-port 533FLR-T Adapter

    Performance models

    • HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

    • HP Ethernet 1Gb 4-port 331FLR Adapter

    • HP FlexFabric 10Gb 2-port 533FLR-T Adapter

    Energy star models

    HP Ethernet 1Gb 4-port 331FLR Adapter

    Storage controller

    Entry models

    HP Smart Array P420i/ZM (RAID 0/1/1+0)



    Base models

    HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)

    25SFF Models

    HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

    Performance models

    HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

    Energy star models

    HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)

    Industry standard compliance

    • ACPI 2.0b Compliant

    • PCIe 3.0 Compliant

    • PXE Support

    • WOL Support

    • Microsoft Logo certifications

    • USB 2.0 Compliant

    Graphics

    Integrated Matrox G200 video standard

    • 1280 x 1024 (32 b/p)

    • 1920 x 1200 (16 b/p)

    Form factor

    2U Rack form factor

    System fans

    • 2P Models have (6) (N+1 redundancy standard)

    • 1P Models have (4) (N+1 redundancy standard)

    Interfaces

    Serial

    1



    Video

    2 (1 front, 1 back) not active simultaneously

    FlexibleLOM Network Ports

    Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports

    HP iLO Remote Management Network Port

    1Gb Dedicated

    SD slot

    1 Internal Secure

    USB 2.0 Ports

    Up to 7 total: up to 2 front, 4 back, 1 internal

    Maximum internal storage

    Hot Plug SFF SAS

    50.0TB

    25 x 2TB (with optional SFF drive cage)



    Hot Plug SFF SATA

    50.0TB

    25 x 2TB (with optional SFF drive cage)

    Hot Plug LFF SAS

    96.0TB

    12 x 8TB (with optional LFF drive cage)

    Hot Plug LFF SATA

    96.0TB

    12 x 8TB (with optional LFF drive cage)

    Hot Plug SFF SAS SSD

    48.0TB

    25 x 1.9TB (with optional SFF drive cage)

    Hot Plug SFF SATA SSD

    96TB

    25 x 3.84TB (with optional LFF drive cage)

    Hot Plug LFF SAS SSD

    19.2TB

    12 x 1.6TB (with optional LFF drive cage)

    Hot Plug LFF SATA SSD

    46.08TB

    12 x 3.84TB (with optional LFF drive cage)
