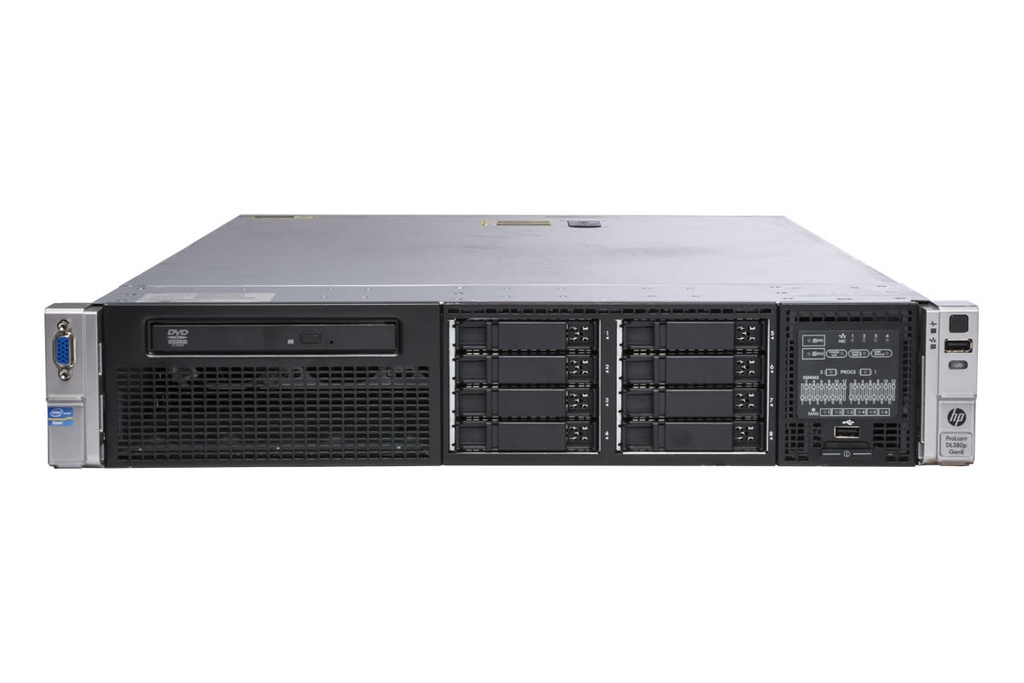

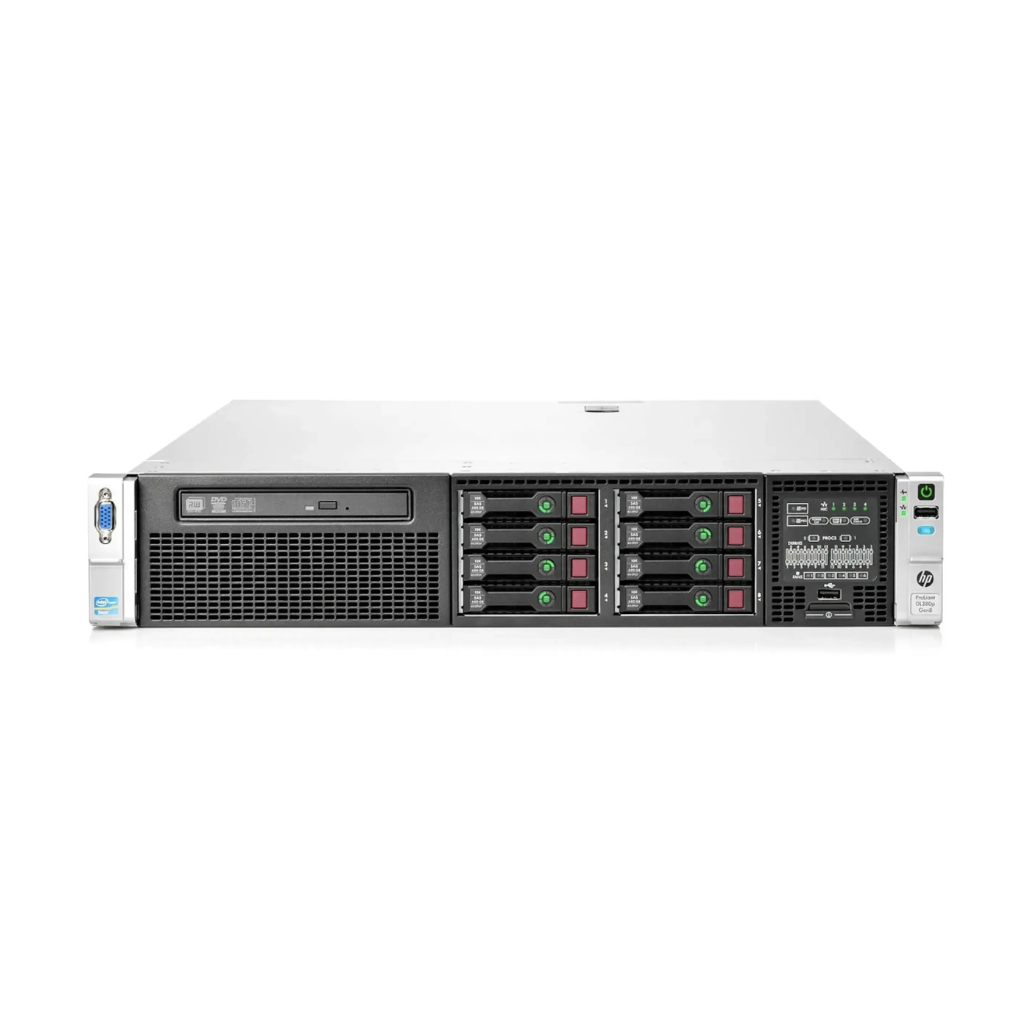

(Refurbished) HPE ProLiant DL380p Gen8 Server (2xE5-2620V2.64GB.18TB)

(0 review)

Model: HPE ProLiant DL380p Gen8 Server
Processor: 2 x Intel Xeon Processor E5-2620v2
Memory: 64GB RAM
HDD: 3 x 6TB
RAID Controller: HPE Smart Array P420i Controller
Power Supply: 1 x 750W
Warranty: 1 year Parts warranty

Part Number: DL380G8-E52620V2-64GB

538.27 538.27 USD 538.27

RM 2,250.00

  • Processor(s)
  • Memory
  • Hard Disk
  • Storage Controller
  • Power Supply
  • Warranty

This combination does not exist.

Processor(s): 2 x Intel Xeon Processor E5-2620V2
Memory: 64GB
Hard Disk: 3 x 6TB
Storage Controller: HPE Smart Array P420i Controller
Power Supply: Single Power Supply (support 750W)
Warranty: 1 year Parts warranty

HPE ProLiant DL380p Gen8 Server

The HP ProLiant DL380p Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced configuration flexibility, unmatched performance, and leading energy efficient design the DL380p Gen8 offers the perfect solution for the dynamic compute requirements of today's demanding datacenters.

Product features

Feature

Description

Processor (One of the following depending on Model)

E5-2600 v2 series Processors
  • Entry processors:

    • Intel Xeon E5-2609 v2 (2.5 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Intel Xeon E5-2603 v2 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

  • Base processors:

    • Intel Xeon E5-2640 v2 (2.0 GHz/8-core/20MB/7.2GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5)

    • Intel Xeon E5-2630 v2 (2.6 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

    • Intel Xeon E5-2620 v2 (2.1 GHz/6-core/15MB/7.2GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5

    • Intel Xeon E5-2650L v2 (1.7 GHz/10-core/25MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/2/2/2/2/2/2/3/4)

    • Intel Xeon E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT/s QPI/60 W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

  • Performance processors:

    • Intel Xeon E5-2697 v2 (2.7 GHz/12-core/30MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2695 v2 (2.4 GHz/12-core/30MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2690 v2 (3.0 GHz/10-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)

    • Intel Xeon E5-2680 v2 (2.8 GHz/10-core/25MB/8.0GT-s QPI/115 W, DDR3-1866, HT, Turbo2- 3/3/3/3/3/4/5/6/7/8)

    • Intel Xeon E5-2670 v2 (2.5 GHz/10-core/25MB/8.0GT/s QPI/115 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2667 v2 (3.3 GHz/8-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

    • Intel Xeon E5-2660 v2 (2.2 GHz/10-core/25MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2650 v2 (2.6 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1866, HT, Turbo2- 4/4/4/4/5/6/7/8)

    • Intel Xeon E5-2643 v2 (3.5 GHz/6-core/25MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

    • Intel Xeon E5-2637 v2 (3.5 GHz/4-core/15MB/8.0GT/s QPI/130 W, DDR3-1866, HT, Turbo2- 1/1/2/3)

E5-2600 series Processors
  • Entry processors

    • Intel Xeon E5-2609 (2.4 GHz/4-core/10MB/6.4GT/s QPI/80 W)

    • Intel Xeon E5-2603 (1.8 GHz/4-core/10MB/6.4GT/s QPI/80 W)

  • Base processors

    • Intel Xeon E5-2640 (2.5 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630 (2.3 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2620 (2.0 GHz/6-core/15MB/7.2GT/s QPI/95 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

    • Intel Xeon E5-2630L (2.0 GHz/6-core/15MB/8.0GT/s QPI/60 W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

  • Performance processors

    • Intel Xeon E5-2690 (2.9 GHz/8-core/20MB/8.0GT/s QPI/135 W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

    • Intel Xeon E5-2680 (2.7 GHz/8-core/20MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2670 (2.6 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2667 (2.9 GHz/6-core/15MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

    • Intel Xeon E5-2665 (2.4 GHz/8-core/20MB/8.0GT/s QPI/115 W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

    • Intel Xeon E5-2660 (2.2 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

    • Intel Xeon E5-2650 (2.0 GHz/8-core/20MB/8.0GT/s QPI/95 W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

    • Intel Xeon E5-2650L (1.8 GHz/8-core/20MB/8.0GT/s QPI/70 W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

    • Intel Xeon E5-2643 (3.3 GHz/4-core/10MB/8.0GT/s QPI/130 W, DDR3-1600, HT, Turbo2- 1/1/2/2)

    • Intel Xeon E5-2637 (3.0 GHz/2-core/5MB/8.0GT/s QPI/80 W, DDR3-1600, HT, Turbo2- 5/5)

Cache memory (One of the following depending on Model)

  • 30MB (1 x 30MB) Level 3 (For Twelve-core processors)

  • 25MB (1 x 25MB) Level 3 (For Ten-core processors)

  • 20MB (1 x 20MB) Level 3 (For Eight-core processors)

  • 15MB (1 x 15MB) Level 3 (For Six-core processors)

  • 10MB (1 x 10MB) Level 3 (For Quad-core processors)

  • 5MB (1 x 5MB) Level 3 (For Dual-core processors)

Chipset

  • Intel C600 series chipset

  • Intel E5-2600 and E5-2600 v2 Processor families

Upgradeability

  • Upgradeable to 2 processors (24 Cores)

  • Up to 24 DIMM slots available for higher Memory capacity

  • FlexLOM connector for 1 Gigabit or 10 Gigabit networking options

  • 8SFF Hard drive bays (total of 16 with optional upgrade)

  • Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)

  • Redundant Power Supply

  • Optical Drive (8SFF/8LFF only)

On System Management Processor

HP iLO (Firmware: HP iLO 4)

Memory protection

  • Advanced ECC

  • Online Spare

  • Lock-step mode

Memory (One of the following depending on Model)

Type

HP Smart Memory DDR3 Load Reduced(LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)



DIMM Slots available

24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)

Maximum capacity (LRDIMM)

768GB (24 X 32GB RDIMM at 1066 MHz)

Maximum performance capacity (RDIMM)

384GB (24 x 16GB RDIMM at 1333 MHz)

Maximum performance capacity (UDIMM)

128GB (16 x 8GB UDIMM at 1600 MHz)

Maximum Capacity (HDIMM)

768GB (24 x 32GB UDIMM at 1333 MHz)

Network controller (One of the following depending on Model)

HP ProLiant Gen8 servers offer a new networking technology - FlexNET Technology. The HP ProLiant DL380p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions.

Entry models

HP Ethernet 1Gb 4-port 331FLR Adapter



Base models

HP Ethernet 1Gb 4-port 331FLR Adapter

25SFF models

HP FlexFabric 10Gb 2-port 533FLR-T Adapter

Performance models

  • HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

  • HP Ethernet 1Gb 4-port 331FLR Adapter

  • HP FlexFabric 10Gb 2-port 533FLR-T Adapter

Energy star models

HP Ethernet 1Gb 4-port 331FLR Adapter

Storage controller

Entry models

HP Smart Array P420i/ZM (RAID 0/1/1+0)



Base models

HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)

25SFF Models

HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

Performance models

HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0)

Energy star models

HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)

Industry standard compliance

  • ACPI 2.0b Compliant

  • PCIe 3.0 Compliant

  • PXE Support

  • WOL Support

  • Microsoft Logo certifications

  • USB 2.0 Compliant

Graphics

Integrated Matrox G200 video standard

  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Form factor

2U Rack form factor

System fans

  • 2P Models have (6) (N+1 redundancy standard)

  • 1P Models have (4) (N+1 redundancy standard)

Interfaces

Serial

1



Video

2 (1 front, 1 back) not active simultaneously

FlexibleLOM Network Ports

Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports

HP iLO Remote Management Network Port

1Gb Dedicated

SD slot

1 Internal Secure

USB 2.0 Ports

Up to 7 total: up to 2 front, 4 back, 1 internal

Maximum internal storage

Hot Plug SFF SAS

50.0TB

25 x 2TB (with optional SFF drive cage)



Hot Plug SFF SATA

50.0TB

25 x 2TB (with optional SFF drive cage)

Hot Plug LFF SAS

96.0TB

12 x 8TB (with optional LFF drive cage)

Hot Plug LFF SATA

96.0TB

12 x 8TB (with optional LFF drive cage)

Hot Plug SFF SAS SSD

48.0TB

25 x 1.9TB (with optional SFF drive cage)

Hot Plug SFF SATA SSD

96TB

25 x 3.84TB (with optional LFF drive cage)

Hot Plug LFF SAS SSD

19.2TB

12 x 1.6TB (with optional LFF drive cage)

Hot Plug LFF SATA SSD

46.08TB

12 x 3.84TB (with optional LFF drive cage)
