HPE Aruba Instant On 1960 24G 2XGT 2SFP+ 370W Switch

(0 review)

  • Ports
  • Power Consumption
  • Voltage
  • Capacity
  • Throughput
  • Warranty
  • Frequency

1,118.69 1118.69 USD 1,118.69

RM 4,503.00

This combination does not exist.

Power Consumption Description: Maximum: 100-127V: 500W

Input Voltage: 100 - 240 VAC

External I/O Ports: 24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports

Switching Capacity: 128 Gbps

Stacking Capabilities: 4H height

Throughput: 95 Mpps

Memory and Processor: Single Core ARMv7 Cortex-A9 @800MHz

PoE Capability: Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)

Management Features: Aruba Instant On Cloud; Web browser; SNMP Manager

Warranty Standard Statement: Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight (imperial): 10.4 lb

Weight (metric): 4.7 kg

Product Dimensions (imperial): 13.80 x 17.42 x 1.73 in

Product Dimensions (metric): 35.05 x 44.25 x 4.4 cm

Operating Temperature: 0-40°C, 0-10,000 ft

Technical Specs:

Ports 24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports
Power Consumption 500W (maximum)
Voltage 100 - 240 VAC
Capacity 128 Gbps
Throughput 95 Mpps
Warranty Limited Lifetime
Frequency 50Hz/60Hz

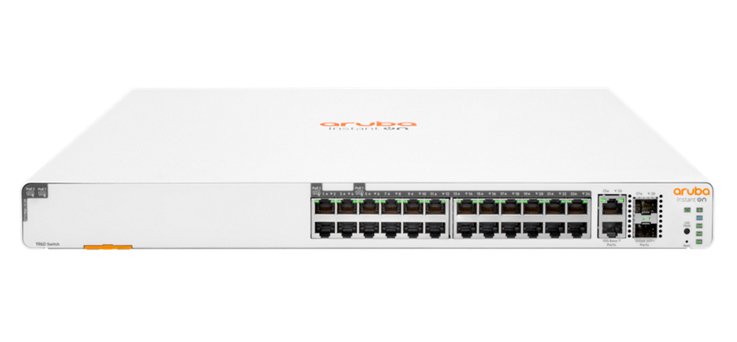

HPE Aruba Instant On 1960 24G 2XGT 2SFP+ 370W Switch (JL807A)

Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable.

These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.

These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.

 Key Features

  • High-level Gigabit with 10GbE Networking for Advanced Small Businesses

Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers, network storage devices, or to other switches. Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.

  • Simplify Network Deployment and Management for Small Organizations

The Aruba Instant On 1960 Switch series offers a complete portfolio of choices for increased small business flexibility. It consists of five models including two (2) 24-port and two (2) 48-port models in PoE and non-PoE configurations, and a 12 port 10-Gigabit aggregation switch. The 24-port and 48-port PoE models come with a power budget of 370W and 600W respectively to support the latest PoE-powered IoT devices.

  • Ease of Use with Cloud-Managed Stacking

The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four (4) Aruba Instant On 1960 switches and manage as a single entity.

  • Robust Security to Protect Your Network

The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network. Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
