HPE ProLiant DL20+ Gen10 Hot Plug Server (E-2314.16GB.1TB)
Intel® Xeon® E-2314 (4-Core, 2.8 GHz, 65W)
16GB (1x16GB UDIMM, 3200 MT/s)
HPE embedded 1Gb 2-port BCM5720 network Adapter
Embedded Intel VROC SATA SW RAID (Notes: SATA only)
2 LFF HDD Bays (Hot Plug)
(1) 290W Non-redundant Power Supply
3 non hot plug, non-redundant
2 PCIe 4.0 slots
Rack (1U), HPE Short Friction Rail Kit
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite NBD response
|Form Factor||Rack (1U)|
|Processor(s)||Intel® Xeon® E-2314 (4-Core, 2.8 GHz, 65W)|
|Memory Type||UDIMM, 3200 MT/s|
|Hard Disk||HPE 1TB SATA 7.2K LFF RW HDD|
|Hard Disk Bay||2 LFF HDD Bays (Hot Plug)|
|Storage Controller||Embedded Intel VROC SATA SW RAID|
|Network Controller||HPE embedded 1Gb 2-port BCM5720 network Adapter|
|Power Supply||(1) 290W Non-redundant Power Supply|
|Warranty||3-Year Parts, 3-Year Labor, 3-Year Onsite NBD response|
|Optical Drive||HPE 9.5mm SATA DVD-ROM Optical Drive|

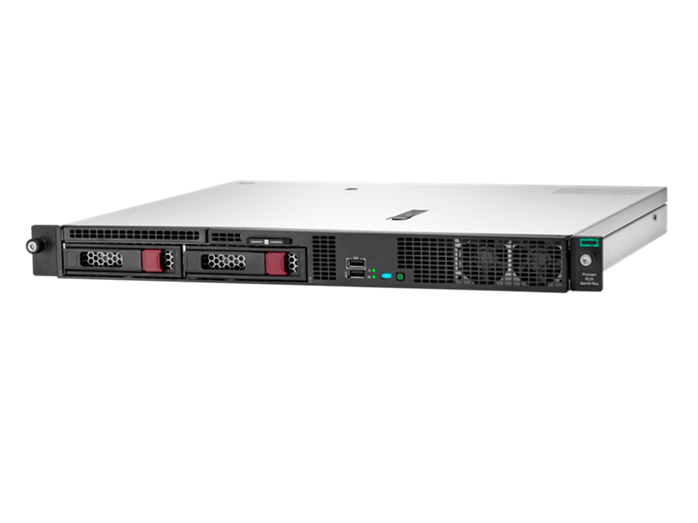

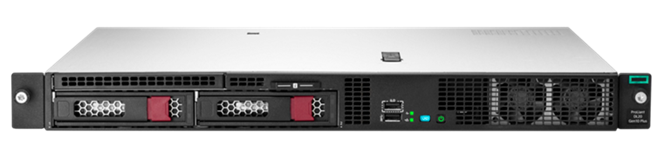

HPE ProLiant DL20 Gen10 Plus Server
The reliable HPE ProLiant DL20 Gen10 Plus server delivers a compact and versatile server with enhanced security at an affordable price. Deploy the portable short-depth rack form factor in small, remote, or branch offices, as a compact yet powerful point of sale platform in transport, retail, and hospitality environments, or as a flexible configuration for customization in space constrained environments of military and government customers. Blending performance, reliability, and manageability, this 1 socket, 1U server featuring Intel® Xeon® E processors provides unique enterprise-class capabilities at a great value—making it an ideal rack server platform for growing businesses, enterprises, and service providers. Outstanding configuration flexibility caters to a variety of business requirements, and a wide range of qualified options fits a variety needs.
- 290W non-hot-plug power supply with Platinum power efficiency.
- Supports Intel® Xeon® E-2300 series processors, up to 8 cores.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Dedicated HPE iLO management port as an option kit for faster data transmission with enhanced security.
- Two PCIe Gen4 slots for greater I/O bandwidth.
Right Balance of Performance, Flexibility, Reliability, and Manageability for Growing Business Needs
You have a wide choice of dual-core, quad-core, hexa-core or octa-core Intel Xeon E processors with up to 128 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen10 Plus server.
Experience outstanding configuration flexibility with support for up to two large form factor (LFF) or six small form factor (SFF) drives, four DDR4 UDIMMs, 290W, 500W, or 800W power supplies, and a more efficient deployment of options via HPE FlexibleLOM and PCIe slots - now supporting PCIe 4.0.
The reliable HPE ProLiant DL20 Gen10 Plus server combines a dense and compact form factor with redundant power supply capability, which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.
Along with an embedded 2 x 1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters that offer a choice of networking bandwidth (1GbE to 10GbE) and fabric, so you can adapt and grow to changing business needs.
HPE iLO5 provides a more efficient and easier server management. It enables large-scale firmware deployment, improved GUI to simplify management with industry-standard APIs, and easy system debug access.
Compact, Secure, and Reliable Design for an Affordable Solution
HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle light workloads up to the some of the most demanding requirements with affordable configuration choices and a wide variety of HPE Qualified Options.
Only Hewlett Packard Enterprise offers industry-standard servers, such as the HPE ProLiant DL20 Gen10 Plus server, with major firmware anchored directly into the silicon and with security protection built in across the server life-cycle, starting with silicon root of trust from HPE.
Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Verification, enabled by the optional HPE iLO Advanced Premium Security Edition, the server’s firmware is checked every 24 hours, verifying validity and credibility of essential system firmware.
Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised server.
Additional security options are available with Trusted Platform Module (TPM) to avoid unauthorized access to the server and store artifacts used to authenticate the server platforms, while the Intrusion Detection Kit logs and alerts when the server hood is removed for further protection.
Industry-leading Services and Ease of Deployment
HPE ProLiant DL20 Gen10 Plus server comes standard with a complete set of services from HPE Pointnext Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Pointnext Services simplify the stages of your IT journey. Advisory and Transformation Services professionals understand customer challenges and design an ideal solution. Professional Services enables rapid deployment of solutions.
Operational Services from HPE Pointnext Services includes: HPE Pointnext Complete Care, HPE Pointnext Tech Care and project-based services, such as Integration and Performance services. Additional services can be added to customize your experience at any stage of your IT lifecycle.
HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
