  2. Right Power PowerBridge 9+ 3KVA Rackmount/Tower UPS
MYR

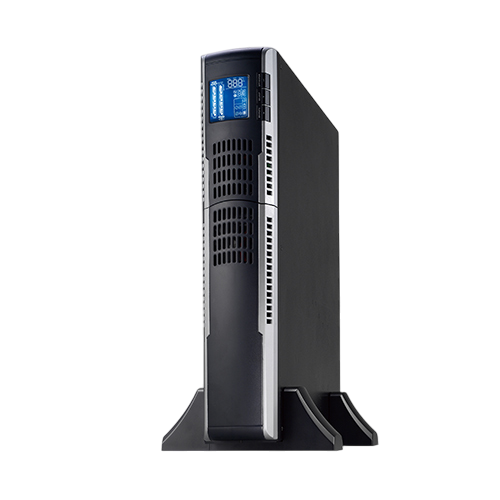

Right Power PowerBridge 9+ 3KVA Rackmount/Tower UPS

https://server2u.com/web/image/product.template/49660/image_1920?unique=b74cadf

Capacity: 3KVA/2700W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110 - 300VAC ±5% (Based on load at 50%) 160 - 300VAC ± 5% (Based on load at 100%)
Frequency Range: 40Hz - 70Hz
Phase: Single Phase with Ground
Input Power Factor: ≥0.99 @ nominal voltage (100% load)
Output
Output Voltage: 200/208/220/230/240VAC
Output Power Factor: 0.9
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 47 - 53Hz or 57 - 63Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 2% @ Linear Load ; ≤ 4% @ Non-Linear Load
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): 4ms (Typical)
Output Socket: 6 x IEC + 1 x IEC C19 Socket
Battery
Battery Type:12V 9AH
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 4 Hrs. to 90%
Charging Current (Max): 1.5A
Physical
Operating Environment: 0-40℃, 20-90% Relative Humidity (Non-Condensing)
Noise Level: <50dBA @ 1 Meter
Dimension (D x W x H (mm)): 630 x 438 x 88 (2U)
Weight (kg): 27.4
UPS Warranty: 3 Years Full Warranty Include Parts & Labour . 2 Years Warranty for Battery

Part Number: PowerBridge 9+ RT 3K

RM 3,750.00 3750.0 MYR RM 3,750.00

RM 3,750.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    PowerBridge 9+ RT Series

    High Power Density Rack/Tower Online UPS


    PowerBridge 9+ RT series is a true online double conversion single phase UPS system. This UPS is available in tower / rackmount 2-in-1 convertible design. It comes with easy-shift rotatable LCD panel to meet different installation requirements as well as ensuring proper viewing orientation for users to monitor the system.


    This UPS model comes with Emergency Power Off (EPO) function which allows the UPS to be shut o in the event of an emergency.


    FEATURES

    LCD Display



    Easy-Shift Rotatable LCD panel to meet different installation requirements as well as ensuring proper viewing orientation for users to monitor the system.

    Tower & Rackmount 2 in 1 Convertible Design



    Suitable for horizontal rack or vertical tower installation.

    Hot-Swappable Battery Design



    UPS battery replacement can be performed without powering down the UPS

    Emergency Power Off (EPO) Function



    Allows the UPS to be shut off in the event of an emergency if the EPO port is connected to an EPO switch.

    Power Management Software



    Come with RS 232 Port & USB Port interfaces to support UPS Power Management Software

    Rear Panel




    1. AC Input
    2. Input Circuit Breaker
    3. USB Communication Port
    4. RS-232 Communication Port
    5. Network/Fax/Modem Surge Protection (RJ45)

    6. EPO Connector
    7. Intelligent Slot
    8. 6 x IEC Output Socket
    9. 1 x IEC C19
    10. Cooling Fan
    11. External Battery Connector
