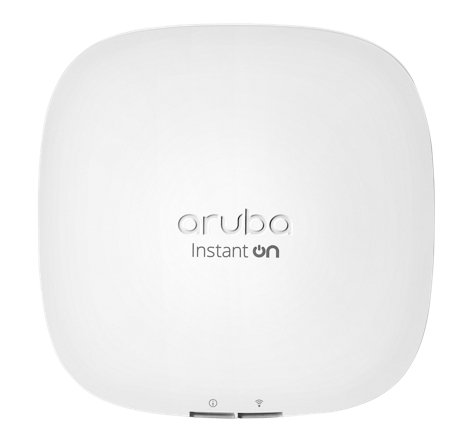

HPE Aruba Instant On AP22 (RW) 2x2 Wi-Fi 6 Indoor Access Point
Input Voltage: Power over Ethernet (POE): 802.3af (class 3) DC power (12V)
Wi-Fi Antenna: Integrated down-tilt omni-directional antennas
Connectivity: IEEE 802.11ax
External I/O Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)
Power Consumption Description: Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio Coverage: Dual Radio for simultaneous dual-band operation 5 GHz 802.11ax
Warranty Standard Statement: Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period.
Weight (imperial)1.1 lb
Weight (metric): 500 g
Product Dimensions (imperial): 1.5 x 6.3 x 6.3 in
Product Dimensions (metric): 37x 160 x 160 mm
| Ports: (1) uplink Gigabit Ethernet port, with POE-in support (802.3af) |
| Power Over Ethernet: 802.3af (class 3) |
| Warranty: 2 years |

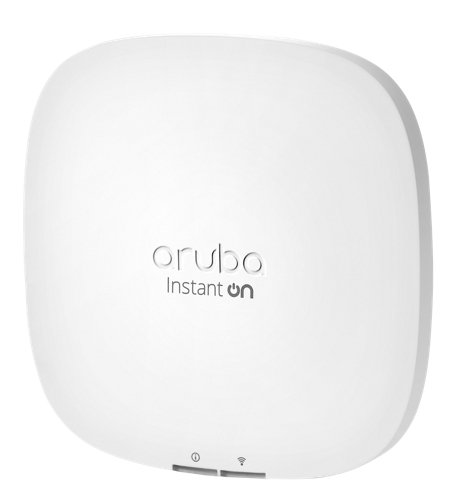

HPE Aruba Instant On AP22 (RW) 2x2 Wi-Fi 6
Indoor Access Point
( R4W02A )
Aruba Instant On AP22 Indoor Access Points deliver affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs.
The compact form factor of the Aruba Instant On AP22 Indoor Access Points (AP) delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included – no extra charge or need for external controllers.
Key Features
Incredible Efficiency with Wi-Fi 6
Aruba Instant On AP22 Indoor Access Points include an easy-to-use web GUI and templates – access points are simple to deploy and are up and running in minutes.
Aruba Instant On AP22 Indoor Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional Multi-User MIMO (MU-MIMO).
Aruba Instant On AP22 Indoor Access Points support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.
Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage
Aruba Instant On AP22 Indoor Access Points have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.
Conveniently expands your network to hard-to-wire areas while nearly eliminating rid of spotty connections and dead zones, to provide Wi-Fi where you need it.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
Aruba Instant On AP22 Indoor Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
Aruba Instant On AP22 Indoor Access Points come with integrated router, gateway, and firewall functionality.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs – the control is at your fingertips.
Creates a Custom Guest Access Experience
Aruba Instant On AP22 Indoor Access Points are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.
Simple to build landing page allows customization of your guest access page with your own brand and logo.
Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.
Instant On supports Facebook Wi-Fi, so when people access the Wi-Fi at your locations, they are redirected through your business’ Facebook page.
