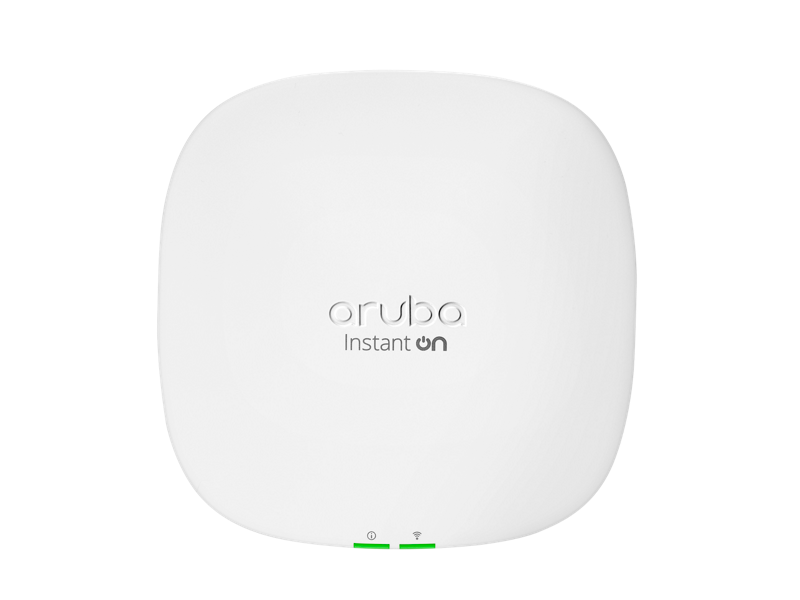

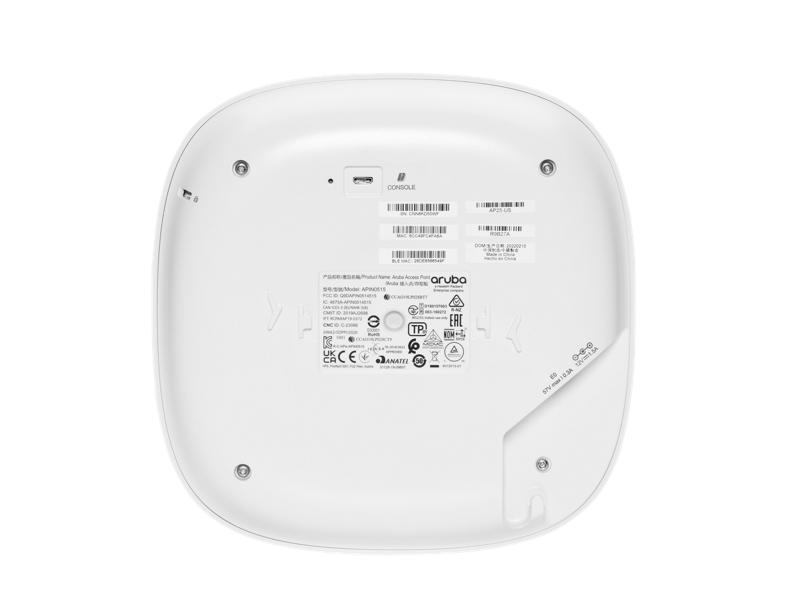

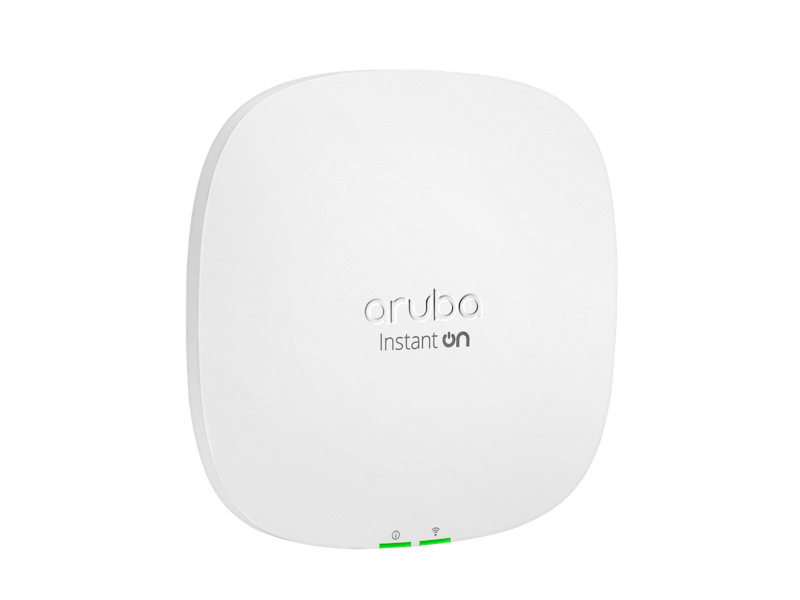

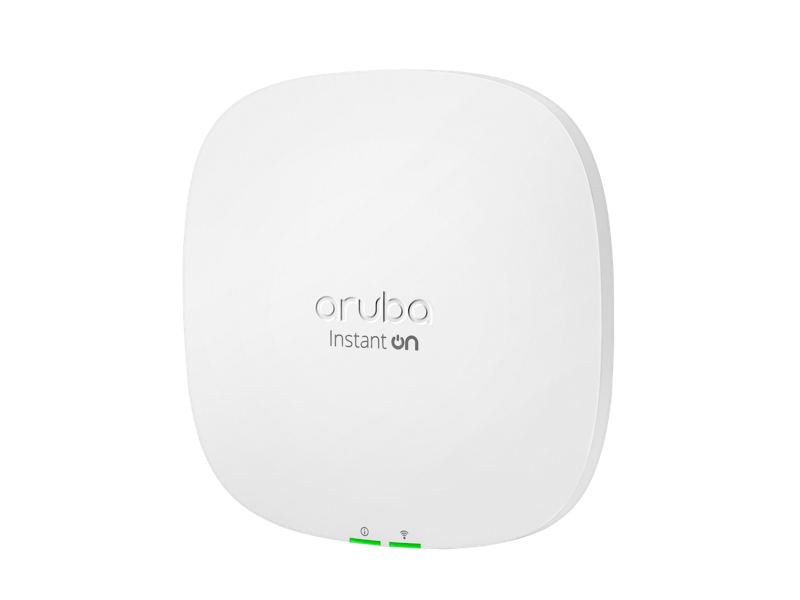

HPE Aruba Instant On AP25 (RW) 4x4 Wi-Fi 6 Access Point
Certifications: EN 60601-1-1 and EN 60601-1-2,
Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Input voltage: Power over Ethernet (POE): 802.3at (class 4)
Wi-Fi antenna: Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.77 dBi in 2.4GHz and 4x4 MIMO with peak antenna gain of 4.55 dBi in 5GHz
Connectivity: standard: Ultra-fast 802.11ax, 4x4:4
Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at)
DC power connector (12V) Bluetooth
Low Energy (BLE) radio LED status indicators
Reset/LED control button
Kensington security slot
Power consumption: 20.1W (PoE), 15.9W (DC)
Warranty: 2-year* warranty
Weight: 1.18 kg
Minimum dimensions ( H x W x D): 5.1 x 20.3 cm
|Ports||Uplink 2.5 Gigabit Ethernet port, with PoE-in support (802.3at)|
|Power Over Ethernet||802.3at (class 4)|
Aruba Instant On AP25 (RW) 4x4
Wi-Fi 6 Indoor Access Point
PoE Powered with the choice to select an optional power adapter.
- Provides a high performance Dual Radio 802.11ax AP with 4 spatial streams (4X4) for higher capacity and coverage.
- This series features maximum data rates of 4.8Gbps in the 5GHz band and 574 Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.3Gbps).
- Includes 2.5G Ethernet uplink port and 160 MHz channel bandwidth for increased wireless throughput.
- Wi-Fi 6 certification supports all mandatory 802.11ax features that include MU-MIMO, OFDMA, TWT, and more.
- Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access.
- Aruba Instant On mobile app and/or cloud-based web portal allows for easy network management onsite or remotely.
Incredible Efficiency with Wi-Fi 6
Higher Performance and Superior Coverage
2.5G Ethernet uplink port enhances wireless connectivity.
The Aruba Instant On AP25 Access Points support the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and Multi-User MIMO (MU-MIMO), and Target Wait Time (TWT).
Aruba Instant On AP25 Access Points support features Target Wake Time (TWT) that helps establish a schedule when clients need to communicate with an access point – improving efficiency for longer battery life.
The Aruba Instant On AP25 Access Points are 100% backward compatible, allowing businesses to support multiple clients (Wi-Fi 6) and legacy (11a/b/g/n/ac) at the same time.
The Aruba Instant On AP25 Access Points deliver higher capacity, efficiency, and performance to small and growing businesses with device-dense environments.
High-performance Aruba Instant On AP25 Access Points bring powerful 4 spatial streams for superior Wi-Fi coverage.
Performance benefits of Orthogonal Frequency Division Multiple Access (OFDMA) are improved, meaning increased network performance and network capacity.
160 MHz channel bandwidth delivers increased mesh throughput and Wi-Fi speed ideal for high-def video streaming and virtual reality devices.
Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open
Aruba Instant On AP25 Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.
Aruba Instant On AP25 Access Points feature integrated router, gateway, and firewall functionality.
Aruba Instant On supports Two-Factor Authentication (2FA) for additional layer of authentication, preventing attackers from remotely accessing your networks.
Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.
