Right Power Titan ONE+ 10K Tower UPS

https://server2u.com/web/image/product.template/61030/image_1920?unique=6b1936b

Capacity: 10KVA / 10,000W
Input
Input Voltage: 200/208/220/230/240VAC
Voltage Range: 110 - 300VAC (Based on load at 50%) 176VAC -300VAC (Based on load at 100%)
46Hz ~ 54Hz or 56Hz ~ 64Hz
Frequency Range: Single Phase with Ground
Phase: ≥ 0.99 @ Nominal Voltage (100% Load)
Input Power Factor:
Output
Output Voltage: 200/208/220/230/240VAC
Output Power Factor: 1
AV Voltage Regulation (Batt. Mode): ±1%
Frequency Range (Synchronized Range): 46Hz ~ 54Hz or 56Hz ~ 64Hz
Current Crest Ration: 3:01
Harmonic Distortion: ≤ 1% @ Linear Load ; ≤ 4% @ Non-Linear Load
Waveform: Pure Sinewave
Transfer Time (AC Mode to Batt. Mode): Zero
Transfer Time (Inverter to Bypass): Zero
Output Socket: Terminal Block
Battery
Battery Type: 20 x 12V 9AH
Backup Time (Depending on Load): 20 - 30 minutes
Recharge Time: 9 Hours to 90% capacity
Charging Current: 1.0A - 4.0A (Adjustable)
Physical
Operating Environment: 0-40℃, 20-90% Relative Humidity (Non-Condensing)
Noise Level: <58dB @ 1 Meter
Dimension (D x W x H (mm)): UPS : 442 x 190 x 318 | Battery Pack: 442 x 190 x 370
Weight (kg): UPS : 17 | Battery Pack : 50
UPS Warranty: 3 Years Full Warranty Include Parts & Labour . 2 Years Warranty for Battery

Part Number: Titan ONE+ 10K + EBM 240v

RM 10,465.00 10465.0 MYR RM 10,465.00

RM 10,465.00

Not Available For Sale

    This combination does not exist.

    Contact Us

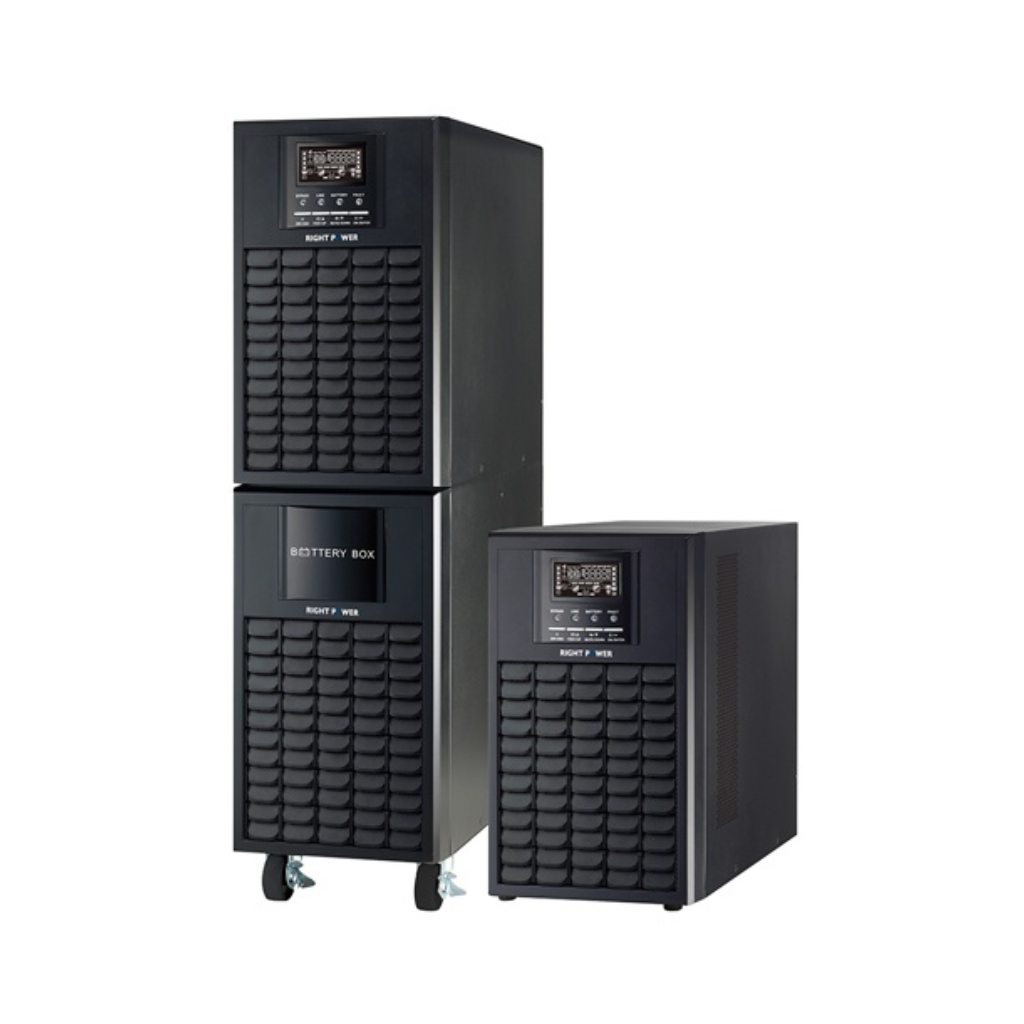

    Titan ONE+ Series

    True Double Conversion Online UPS

    The Titan ONE+ series is a tower type design with a true double conversion online single-phase UPS system. This series comes with an output power factor of 1.0. A comprehensive LCD display allows users to easily monitor and access their UPS status.


    The UPS systems come standard with USB and RS-232 communication ports, as well as an intelligent slot for additional adapters, protocol converters, and relay contact cards. An Emergency Power O (EPO) function is available for the 6KVA-10KVA models, which allows UPS to be shut off in the event of an emergency.


    The Titan ONE+ series system is designed to provide clean, high-quality power to critical devices such as sensitive networks, small computer centers, servers, medical equipment, telecom applications, and industrial applications.

    FEATURES

    User Friendly LCD Display
    Tower Type Design
    Unity Output Power Factor - 1.0
    Wide Input Range (110V - 300V)
    Programmable Power Management Outlets
    ECO Mode Function for Energy Saving
    Emergency Power Off (EPO) Function
    Smart Battery Charger Design to Optimize Battery Performance
    Generator Compatible
    Comes with RS 232 & USB Port, SNMP Slot and Power Management Software
    Optional N+X Parallel Redundancy

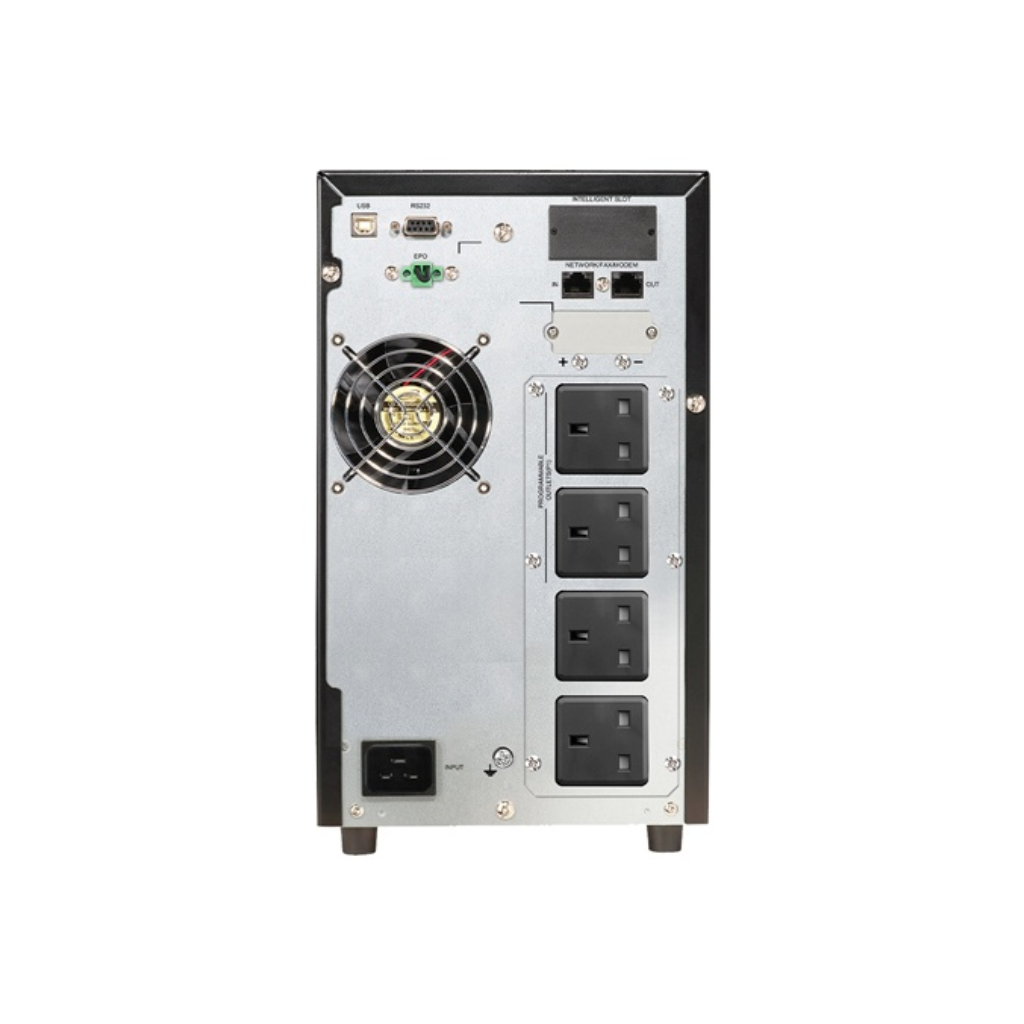

    Rear Panel










    1. Input/Output Terminal
    2. Input Breaker
    3. Cooling Fan
    4. Maintenance Bypass Switch (Optional)
    5. USB Communication Port
    6. RS-232 Communication Port
    7. Intelligent Slot
    8. External Battery Connector
    9. Emergency Power Off (EPO) Connector
    10. Parallel Connection
