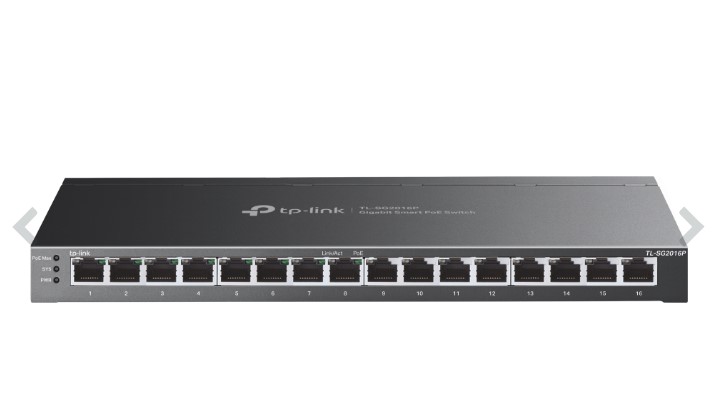

TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

https://server2u.com/web/image/product.template/57356/image_1920?unique=52a1338

Standards and Protocols
IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface
• 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity: Fanless

Power Supply:
• External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)
• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W*

Dimensions ( W x D x H ): 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Mounting: Desktop/Wall-Mounting

Max Power Consumption: 146.5 W (110 V/60 Hz) (with 120 W PD connected)

Max Heat Dissipation: 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

Warranty : 5 Years

Part Number: TL-SG2016P

RM 1,149.00 1149.0 MYR RM 1,149.00

RM 1,149.00

Not Available For Sale

    This combination does not exist.

    Contact Us
    Power Consumption: 146.5 W (110 V/60 Hz) (with 120 W PD connected)
    Interface: • 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+) • Auto-Negotiation/Auto MDI/MDIX
    Dimensions (W x D x H): 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
    Power Supply: • External Power Adapter (Output: 53.5 VDC/ 2.43 A)
    Warranty: 5 years
